60 kN LHP Tevema

Specifications

Die angegebenen Durchmesser sind in mm in vollständig flacher Position.

SKU	60 kN LHP
Preis	0.00
Price Group	aanvraag
prognostizierte Lieferzeit	in Absprache
Führung Art der Mittel, die gegen Drehung gesichert sind	Door strips aan te passen
Geleidertype beveiligd tegen rotatie	Prismagids
Handhebelposition	360 ° links en rechts instelbaar
gereedschapsklemmen	Afneembare klem
locatie gat	Ø 25 H7
In hoogte verstelbaar	115.00
Projectie	200
Max. Perskracht in de UT	60 kN
~Kg	218.00
Hub	50 mm - 6 mm
Farbe	RAL 7035

Product description

Specs

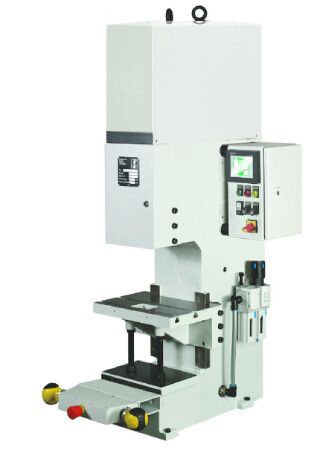

Press type	C stand with adjustable table
Operation	Control ( optional )
Overhang	200 mm
Installation height adjustable	115 mm - 375 mm
Stroke/power stroke	50 mm - 6 mm
Pressing force power stroke	60 kN
Pressing force approach	5,4 kN
Pull-out force return stroke	4,1 kN
Force generation	Hydropneumatic cylinder
Operating pressure	6 bar
Location bore	Ø 25 H7
Clamped piece	Removable clamped piece
Twist-free guide	Prism guide
Guide play-free adjustable	By adjustment gib
Height adjustment guide unit	Ratchet
Fastening guide unit per screw	170 Nm
Connection hose	1/2''
Two-Hand safety control ES07	Optional
Two-Hand safety control ZS07	Optional
Two-Hand safety control Spice Flex	Optional
Standard color	RAL 7035
Weight	218 kg
